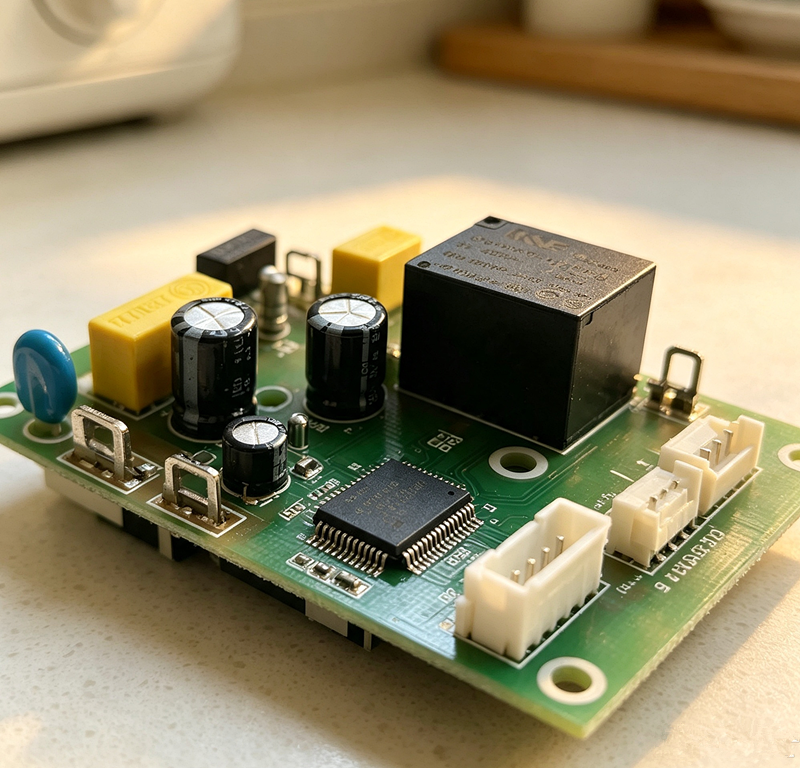

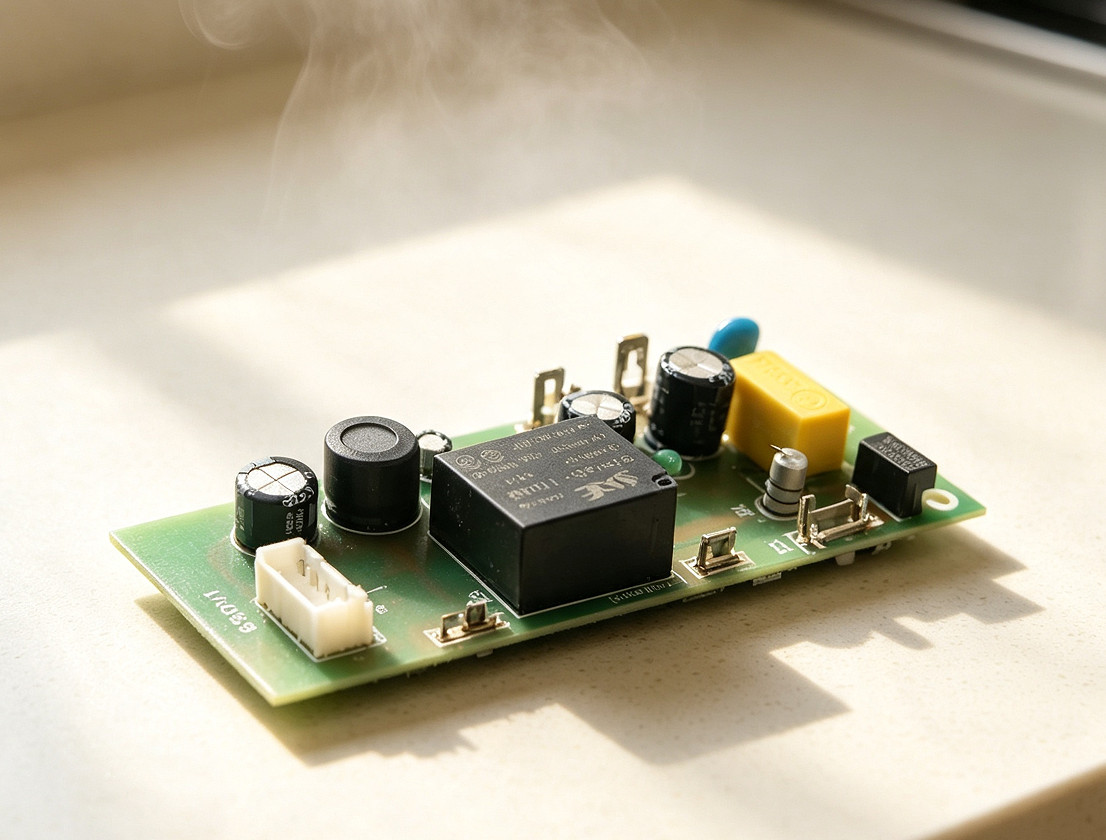

Egg Cooker Control PCBA With Precise Temperature And Timing Functions

This egg cooker control PCBA is developed for small kitchen appliance manufacturers. It combines temperature control, timing settings, key input, and heating-element drive in a compact layout. It suits egg cookers, multi-function breakfast machines, and similar small heating appliances, where cooking time and temperature level directly affect the user experience. Ningbo MingXi provides PCB assembly China solutions for appliance brands, from board design to volume production.

Key Functions

• User settings input: reads settings through on-board keys or external interface modules.
• Cooking program control: runs the selected cooking program.
• Heating element drive: relay or triac output drives the heating element.
• Temperature feedback: sensor feedback stabilizes heating power and helps prevent overheating during continuous operation.
• Timer function: set different egg textures, from soft-boiled to hard-boiled, without watching the cooker.

Board Layout for Assembly Lines

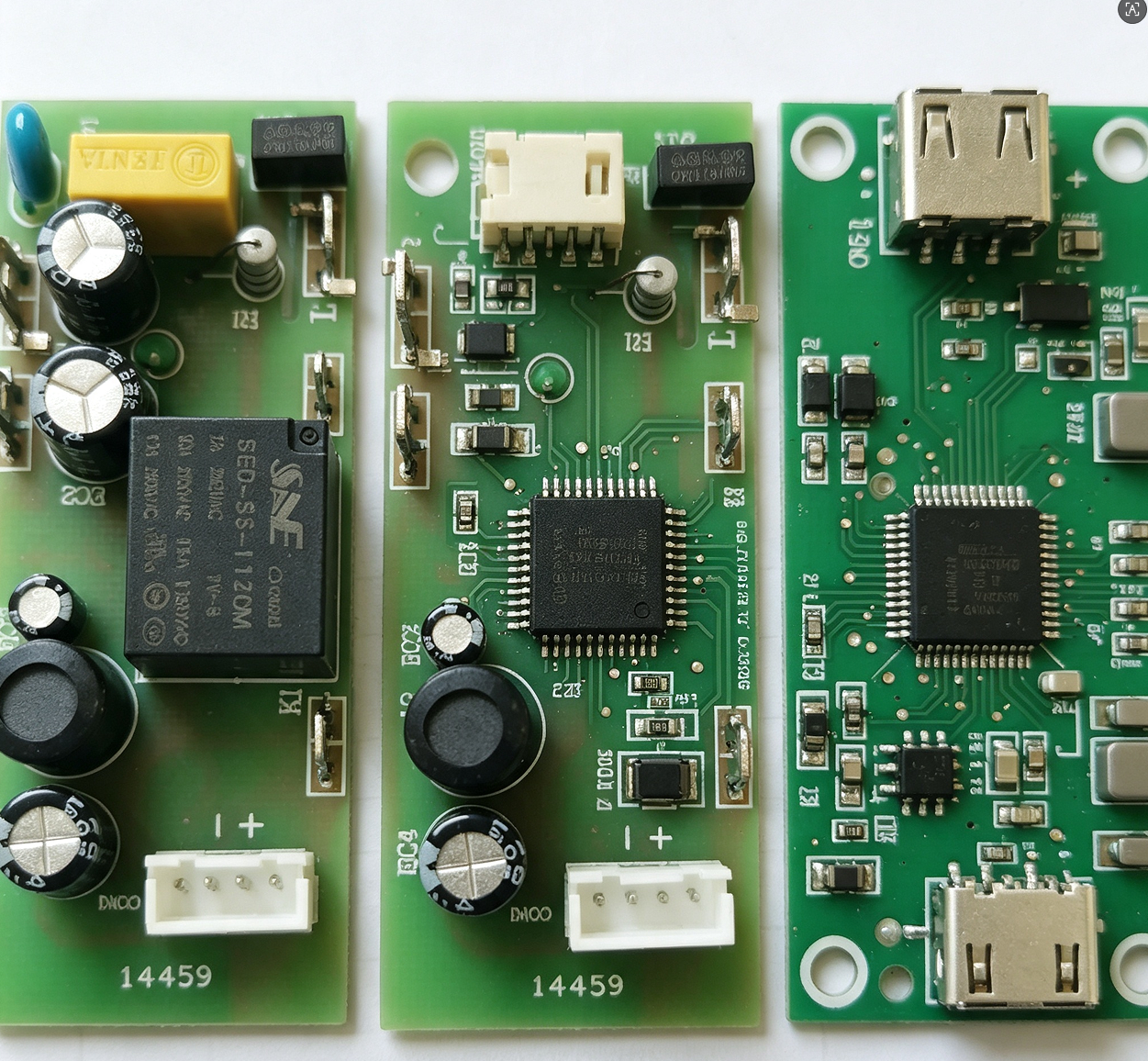

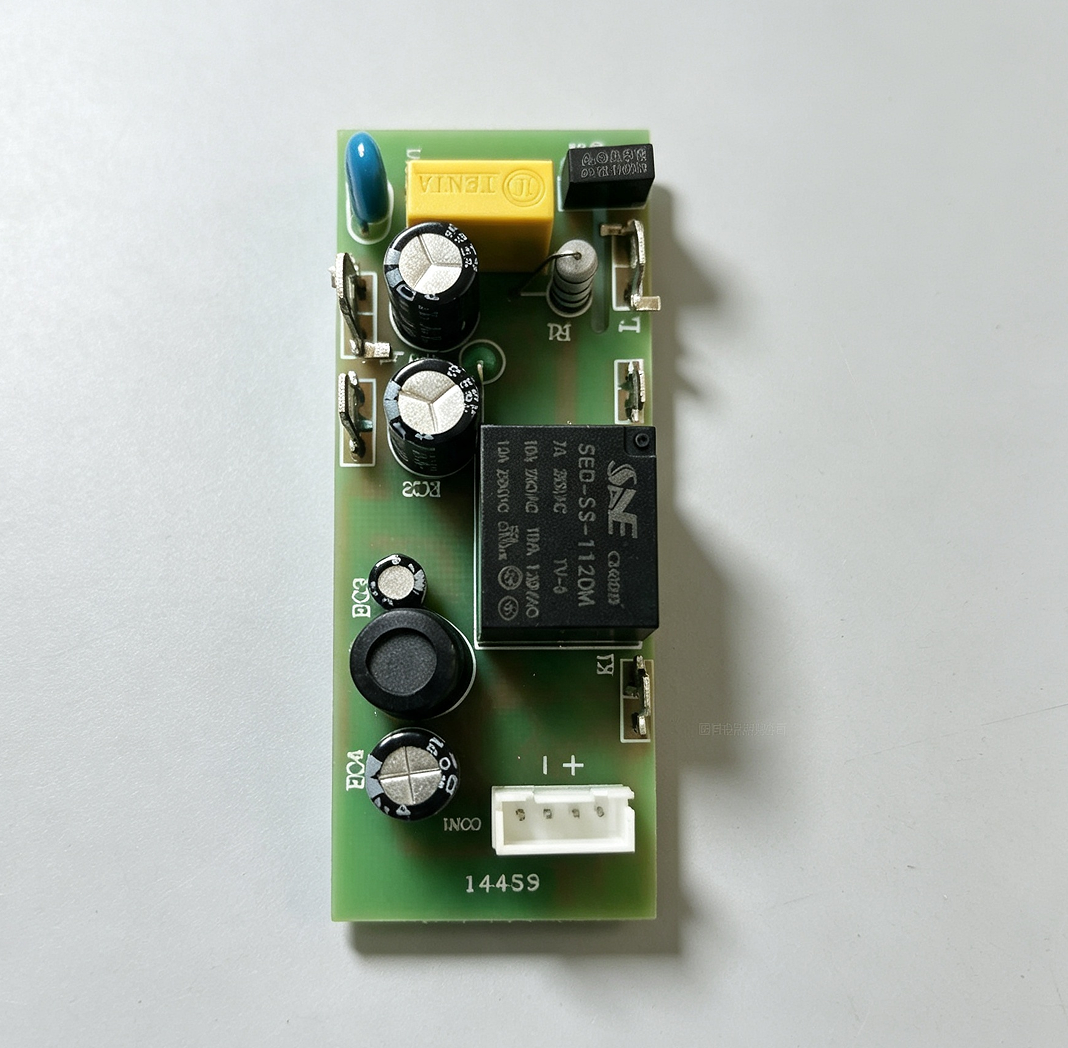

The board mixes through-hole and SMT components. Power-related parts such as relays, capacitors, and connectors are mostly on the top side, making them easy to test and replace during mass production. Control chips, resistors, and small-signal components sit more densely in the center. This gives workers clear access points for wiring, testing, and rework on a kitchen appliance assembly line.

Applications

• Egg cookers
• Multi-function breakfast machines
• Similar small heating appliances

Need the power supply side too? See our AC-DC switch mode power control PCBA.

One-Stop Service and Customization

We can adapt the board to your plastic housing, water tray structure, and heating module. Common changes include board dimensions, key positions, connector types, buzzer feedback, and temperature curves for different egg sizes and voltage markets. We recommend a small trial batch before full production, so you can confirm cooking performance, button feel, and fit inside the final casing.

What to Send for a Quotation

• Appliance type and heating element power
• Supply voltage and target market
• Temperature sensor type and cooking programs needed
• Key layout, buzzer, and display or indicator requirements
• Housing dimensions and estimated quantity

FAQs

Which appliances can use this control board?

It is designed for egg cookers, multi-function breakfast machines, and similar small heating appliances.

How does the board control temperature?

It uses temperature feedback from sensors to stabilize heating power and help prevent overheating during continuous operation.

Can you adjust the board for our housing and markets?

Yes. We can change board dimensions, key positions, connector types, and buzzer feedback, and modify temperature curves for different egg sizes and voltage markets.

Can I order a trial batch first?

Yes, and we recommend it. A small batch lets you confirm cooking performance, button feel, and assembly fit before full production.

Request a quote for your egg cooker control PCBA.
