AC DC Switch Mode Power Control Circuit Board Assembly High Efficiency PCBA

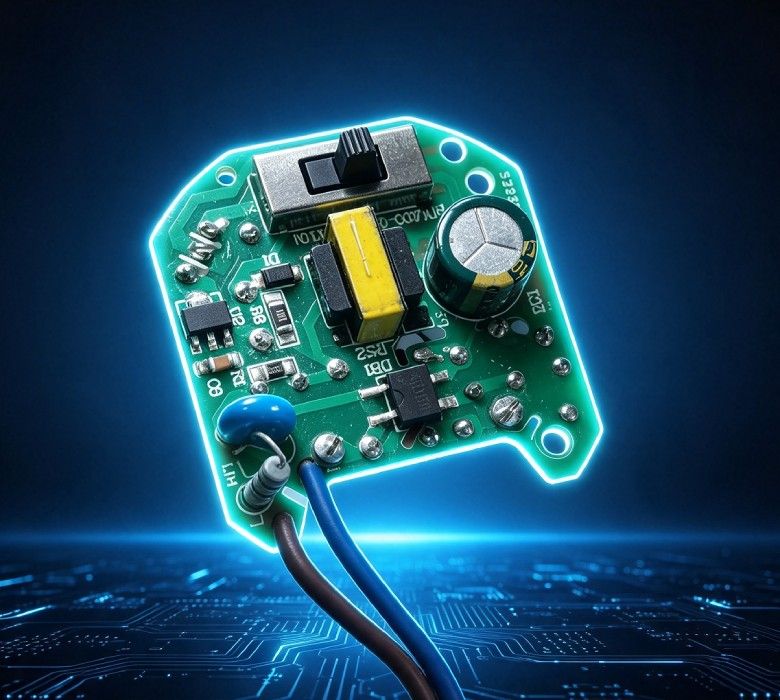

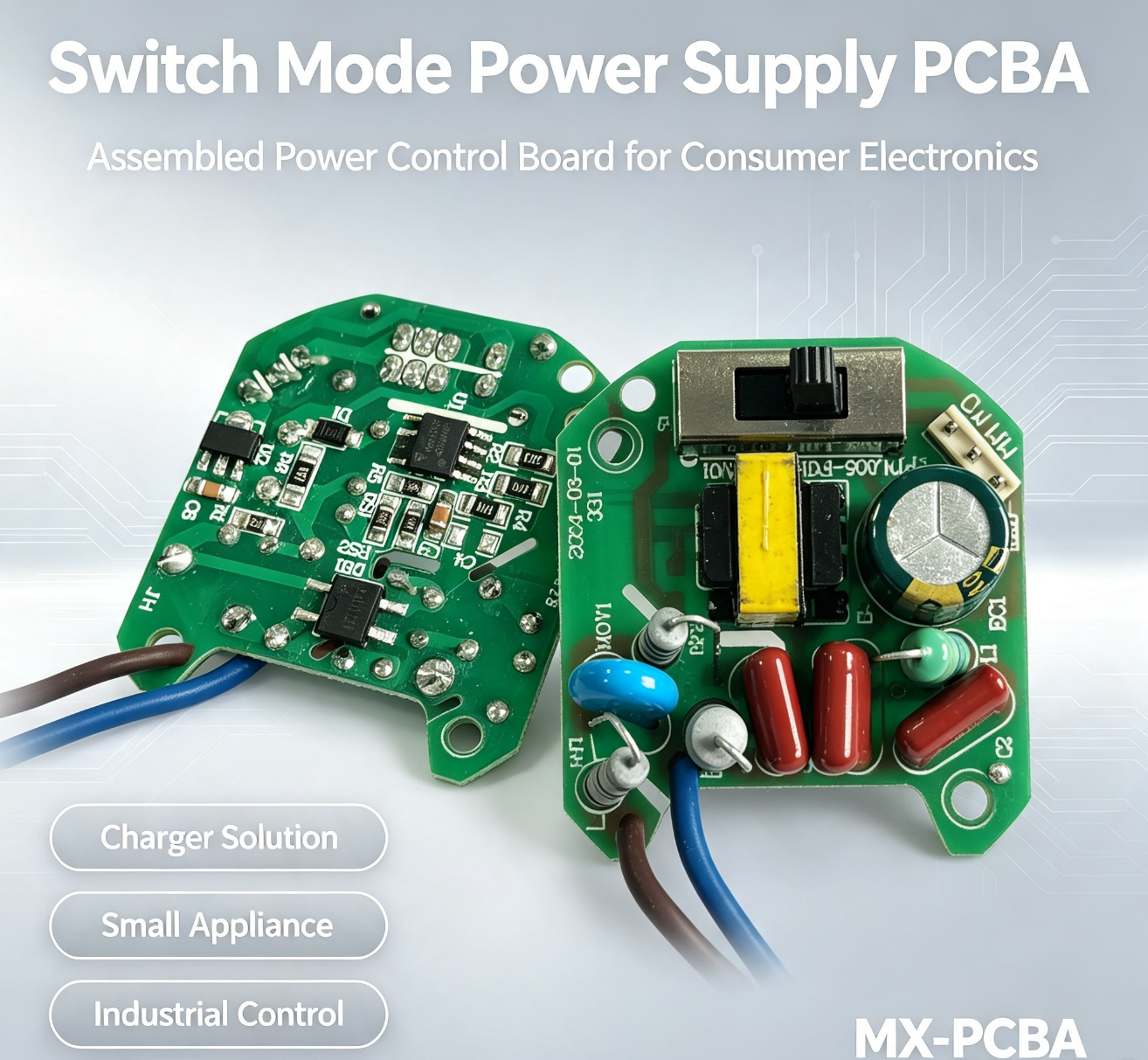

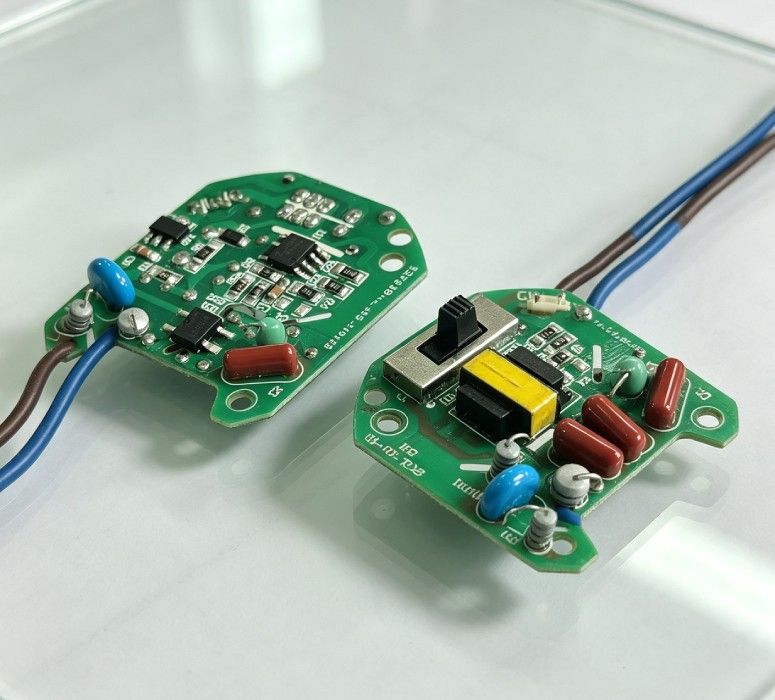

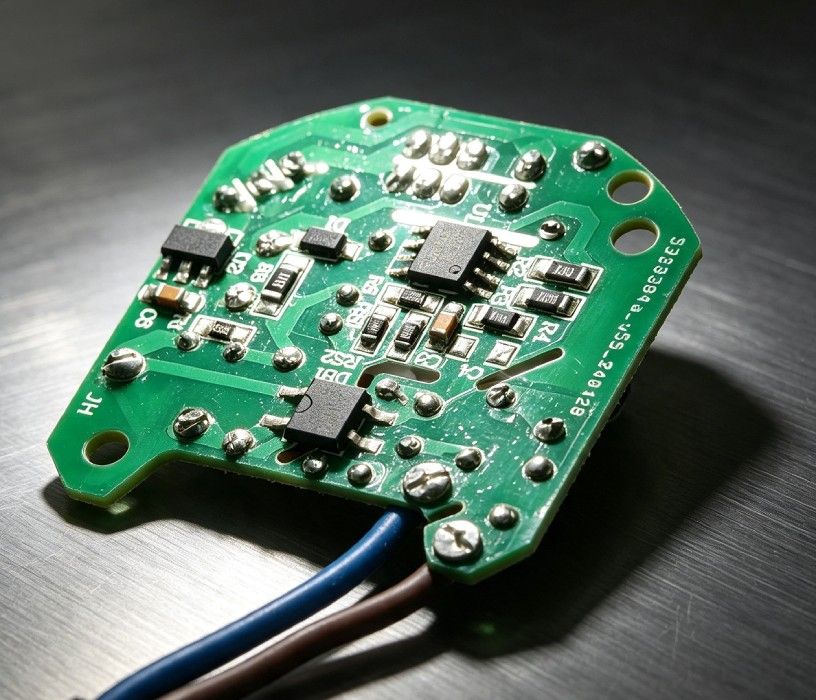

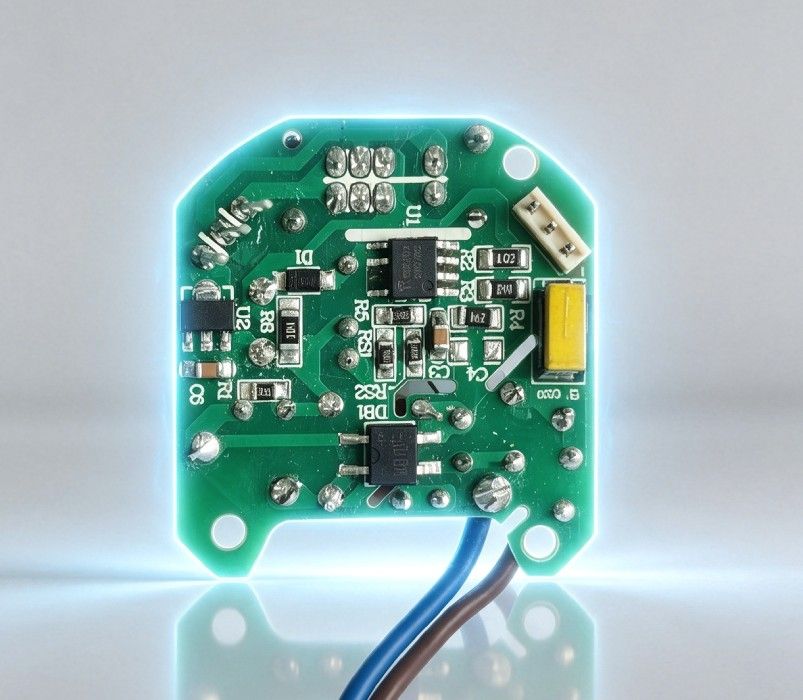

This AC-DC power supply PCBA is a fully assembled switch-mode power control circuit board. It integrates complete EMI input filtering, a rectifier circuit, a PWM control chip, a safety protection circuit, and a power output unit. A slide switch controls power on and off, and the compact dual-section design supports low-power AC-DC conversion for consumer electronics. Ningbo MingXi supplies it through our PCB assembly services from China, with OEM and ODM customization.

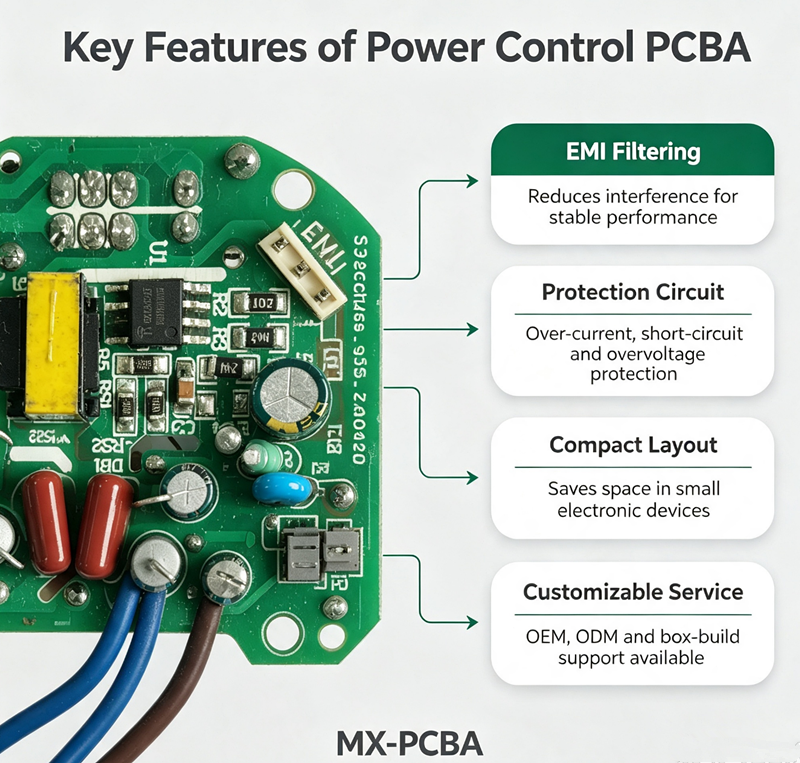

Key Functions

• EMI input filtering: low electromagnetic interference from a mature, stable circuit design.
• Rectifier circuit and PWM control chip: switch-mode AC-DC conversion for low-power products.
• Safety protection: built-in short-circuit, over-current, and over-voltage protection.
• Power output unit: delivers the converted DC output.
• Slide switch: power on/off control on the board.
• Compact layout: size and function can be customized for OEM and ODM projects.

Applications

• Small household electrical appliances
• Portable device chargers
• LED driver modules
• Smart small equipment and low-power industrial control accessories
• Beauty instruments and handheld consumer electronics

One-Stop Service and Customization

Ningbo MingXi provides one-stop service for global machine builders and electronic brand customers: schematic optimization, PCB layout, PCBA prototyping, mass production, and box-build assembly. We customize the board size and functions for OEM and ODM projects. For complete products, see our box build and electric control panel solutions.

Quality Control

Production follows strict IATF 16949 and ISO 9001 quality control. We use qualified components, and the design supports common safety certification requirements.

What to Send for a Quotation

• Input voltage range and local standard
• Required output voltage and current
• Safety certification you need for your market
• Board size limits and switch or connector requirements
• Estimated order quantity

FAQs

What protections does this power control board include?

It includes short-circuit, over-current, and over-voltage protection, plus EMI input filtering for low electromagnetic interference.

Can you customize the size and functions?

Yes. We can customize the size and functions for OEM and ODM projects.

Do you offer box-build assembly with the board?

Yes. We support box-build integrated assembly services, including PCBA prototyping and mass production.

Which products is this board used in?

Typical uses include small household appliances, portable chargers, LED driver modules, beauty instruments, and handheld consumer electronics.

Request a quote for your AC-DC switch-mode power control PCBA.
