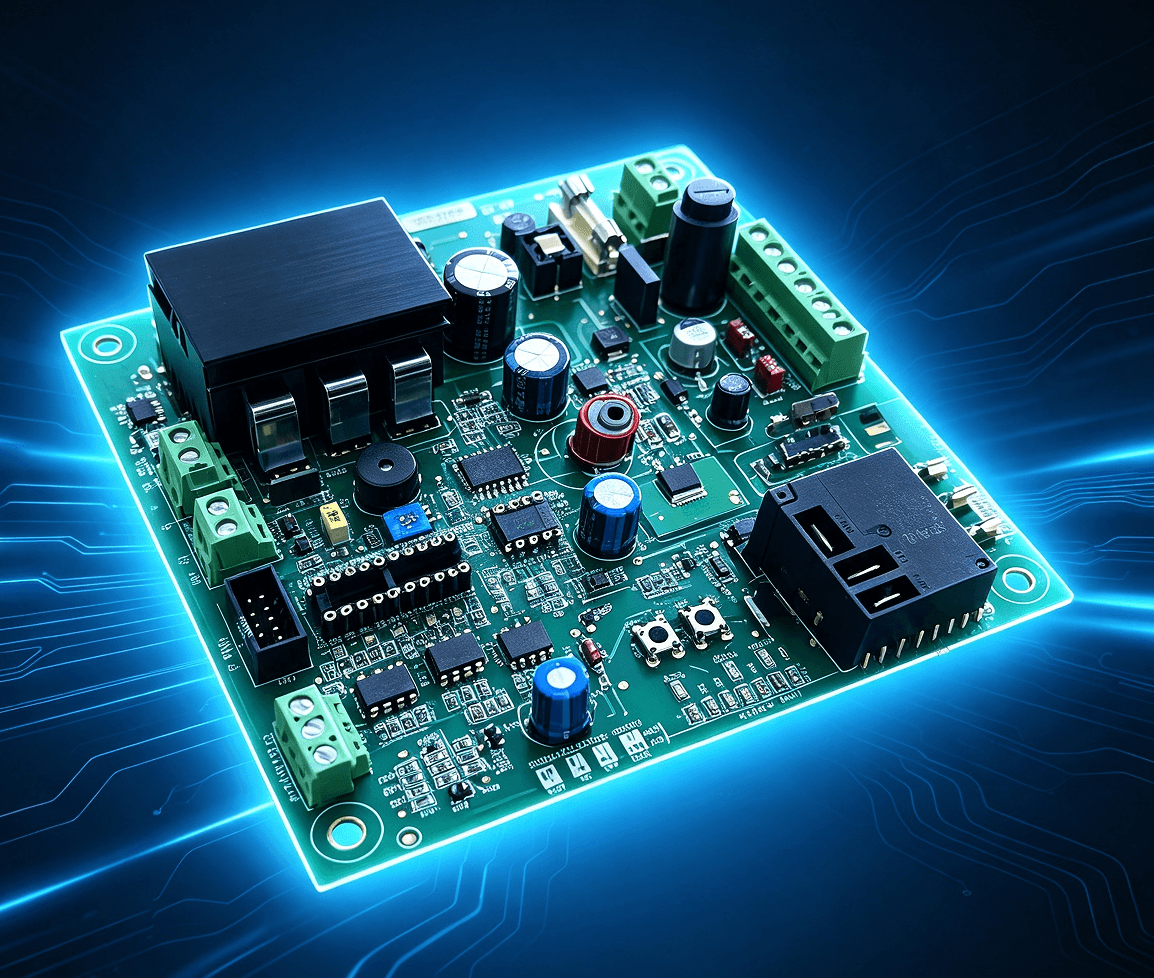

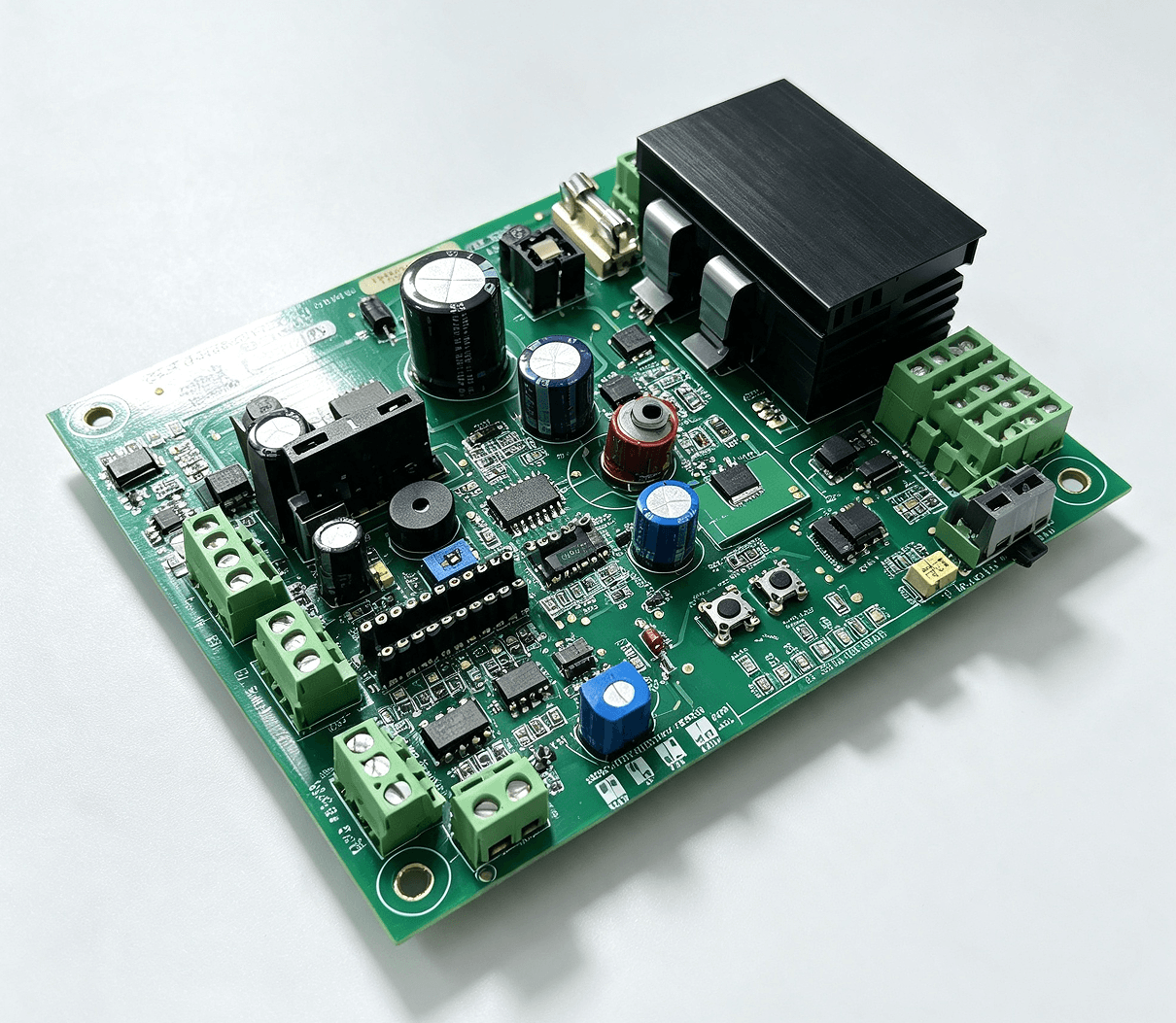

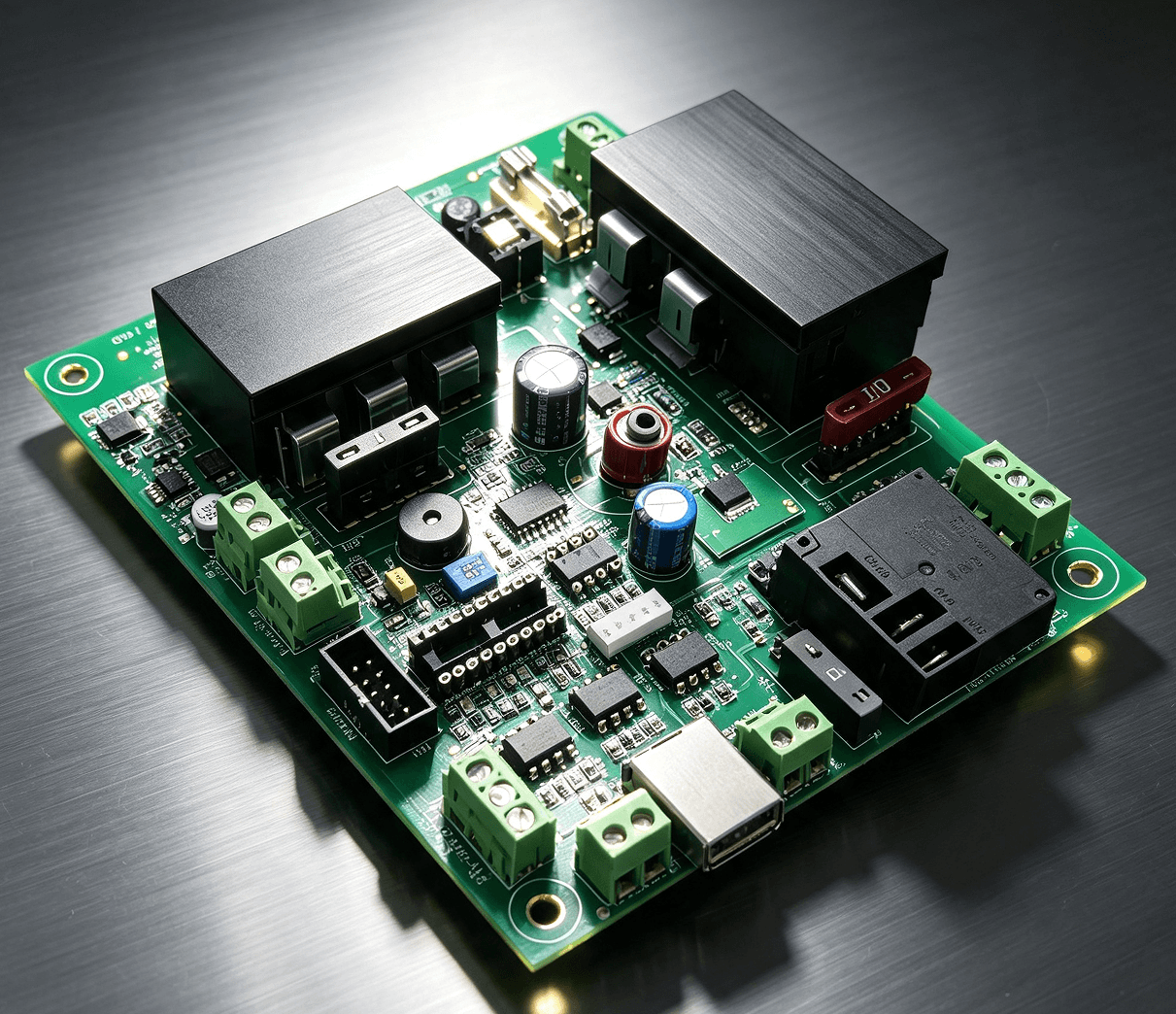

High Quality PCBA For Roller Door Control Systems

Roller Shutter Door Controller PCBA for Commercial and Industrial Doors

This custom roller shutter door controller PCBA is the core control unit for electric rolling shutter doors. It manages lifting and lowering, adjustable travel height, timed operation, and sensor-triggered movement, with built-in safety circuit protection for reliable daily use. Ningbo MingXi designs and builds it as a complete PCB assembly China project, from circuit design to mass production.

Key Functions

• Automatic lifting and lowering: controls the shutter motor to open and close.
• Timed open/close schedule: set daily opening and closing times without manual operation.
• Adjustable travel height: precise control of the shutter stop position.
• Sensor-activated operation: supports sensor input for automatic lifting and lowering.
• Safety circuit protection: built-in protection for safe door operation.

Applications

• Commercial rolling shutter doors (shops, warehouses, loading bays)
• Industrial roller door systems
• Building automation projects
• Replacement controller boards for existing roller door systems

OEM and ODM Customization

We adapt this controller to your project: voltage standards, interfaces, connectors, control logic, and firmware functions. We can also supply a custom CNC aluminum enclosure to match the board. Our one-stop service covers hardware circuit design, PCB layout, SMT and through-hole assembly, firmware testing, prototype validation, and mass production.

What to Send for a Quotation

To quote quickly, please share:

• Motor type and power rating
• Supply voltage and local standard
• Required control inputs (remote, wall switch, sensor, limit switch)
• Any timing, travel-height, or safety functions you need
• Enclosure requirements and estimated order quantity

Frequently Asked Questions

Can you customize the controller for our voltage and motor type?

Yes. Send us your motor specifications, supply voltage, and required functions, and we will adjust the circuit design and firmware accordingly.

Do you supply the enclosure as well?

Yes. We can supply a custom CNC aluminum enclosure designed for the controller board.

Can you provide a prototype before mass production?

Yes. We build and validate prototypes first, then move to volume production once you approve them.

Request a quote for your roller shutter door controller PCBA.
