Circular Motor Control PCBA For Advanced Smart Home Appliances

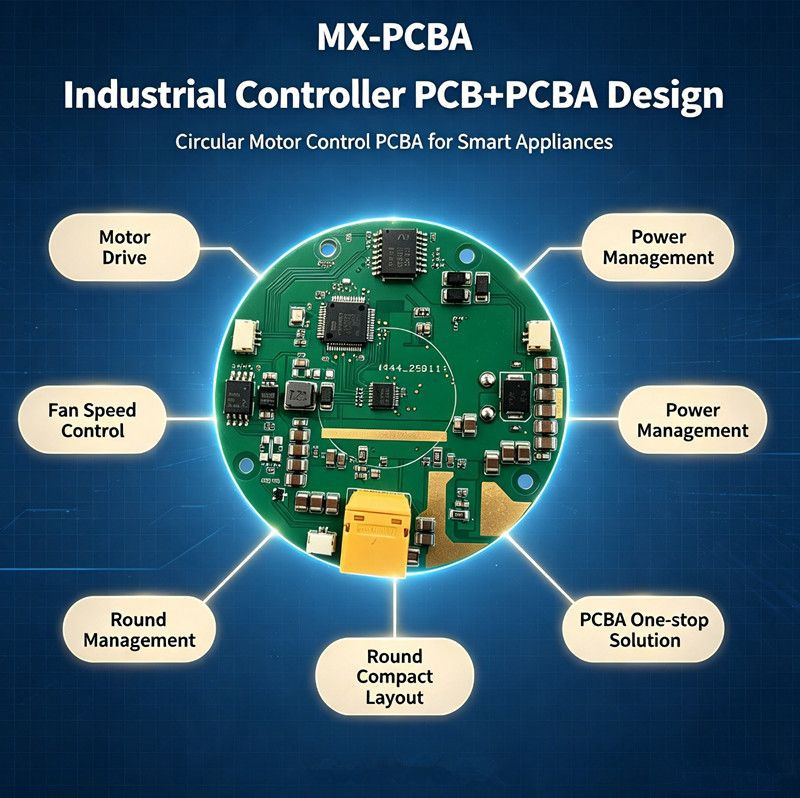

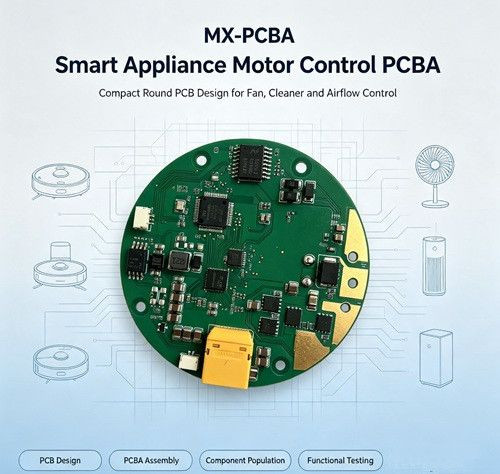

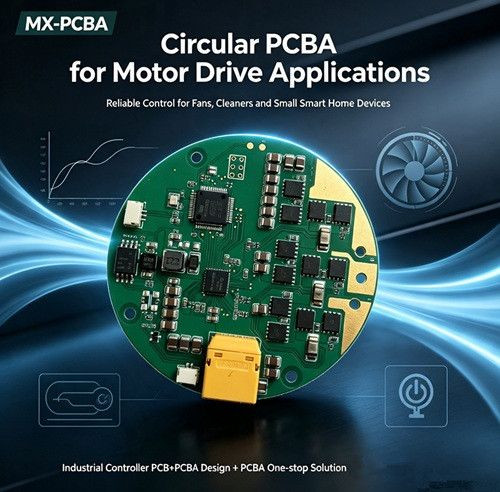

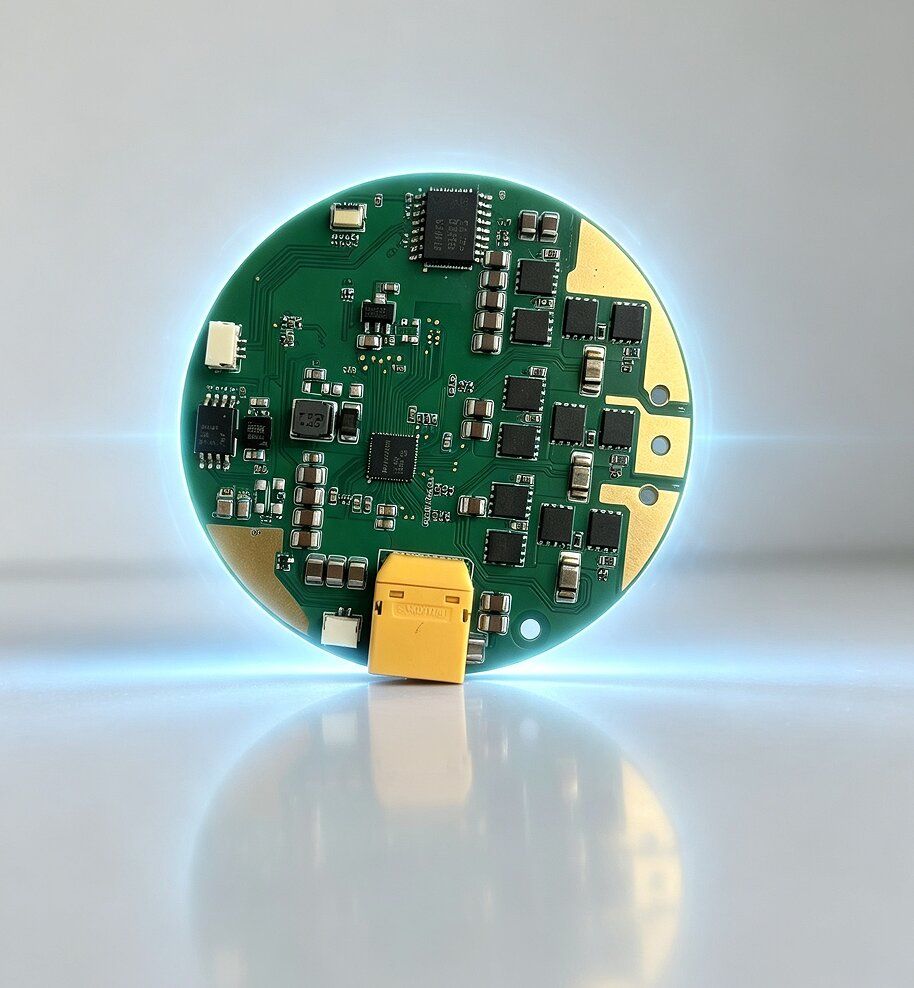

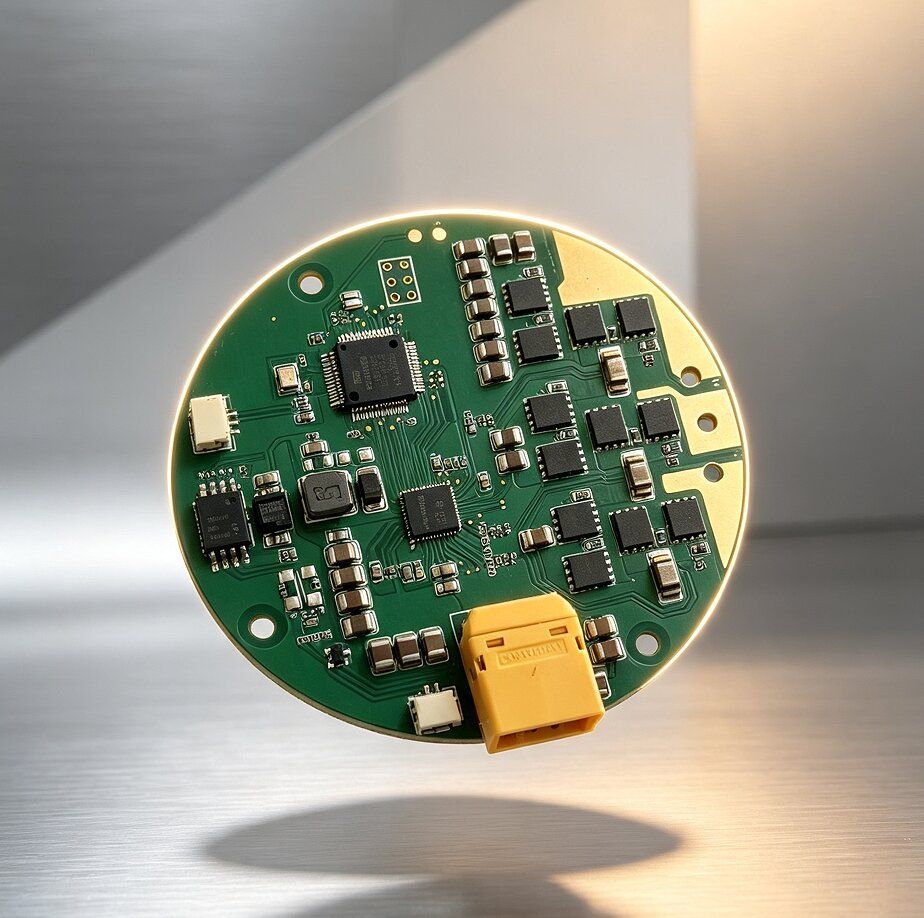

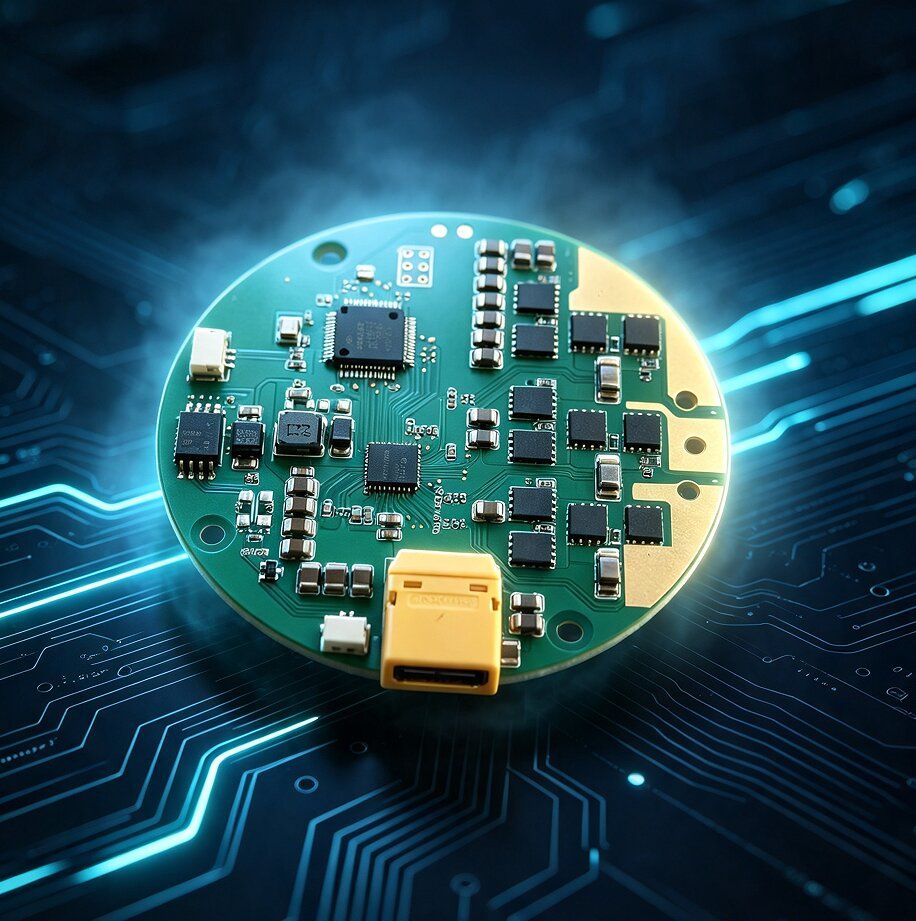

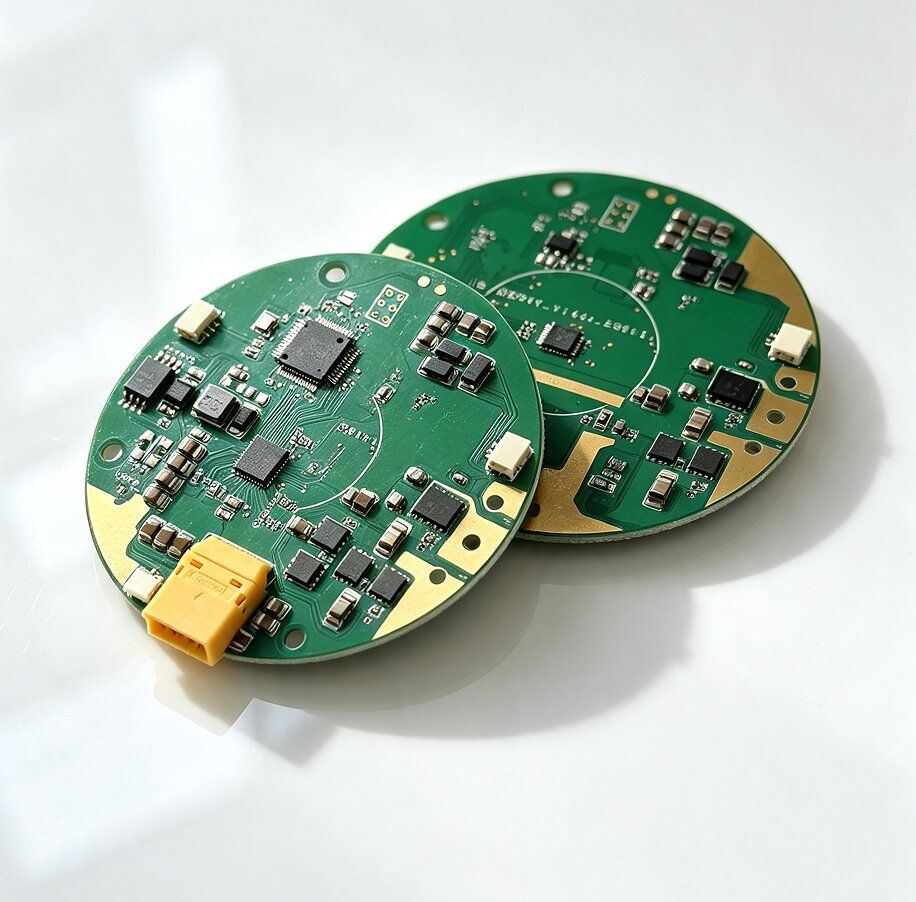

This circular PCBA is a compact motor control board for smart home appliances and small electric devices. It integrates motor drive, power management, signal processing, and peripheral interface circuits into a space-saving round layout. Ningbo MingXi builds it as a bulk PCBA manufacturer for appliance brands, from industrial controller PCB design to finished boards.

Key Functions

• Motor drive: reliable motor control for compact motor-driven products.
• Power management: stable power handling on the same board.
• Signal processing: on-board signal processing circuits.
• Peripheral interface circuits: connections for the other parts of your appliance.
• Fan speed regulation and power conversion: supports stable system operation.

Applications

• Smart vacuum cleaners and robot cleaners
• Fans and air purifiers
• Ventilation systems
• Water pumps
• Other compact motor-driven products

Need a rectangular board for larger drive loads? See our compact wired PCBA power drive control module.

One-Stop Service and Customization

We provide industrial controller PCB design, PCBA assembly, component population, inspection, functional testing, and final assembly preparation. We also support custom PCB layout, material selection, interface modification, and OEM/ODM development for different smart home and small appliance projects.

What to Send for a Quotation

• Appliance type and motor type
• Supply voltage and power requirements
• Functions you need (motor drive, fan speed regulation, power conversion)
• Board size and mounting space available
• Interface requirements and estimated quantity

FAQs

Which appliances can use this circular motor control board?

It is suitable for smart vacuum cleaners, robot cleaners, fans, air purifiers, ventilation systems, water pumps, and other compact motor-driven products.

What circuits are integrated on the board?

The board integrates motor drive, power management, signal processing, and peripheral interface circuits in a round layout.

Can you modify the layout or interfaces for our product?

Yes. We support custom PCB layout, material selection, interface modification, and OEM/ODM development.

Is the board tested before delivery?

Yes. Inspection and functional testing are part of our one-stop solution.

Request a quote for your circular motor control PCBA.
