Compact Wired PCBA Power Drive Control Module For Efficient Motor Management

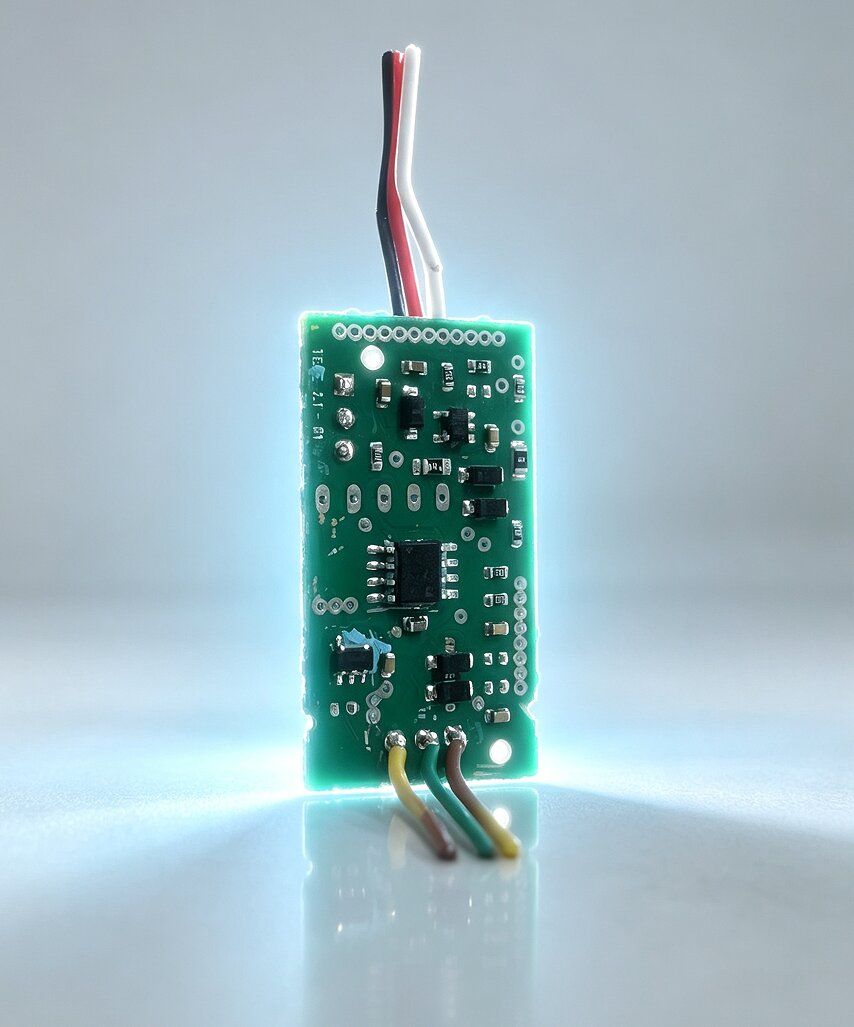

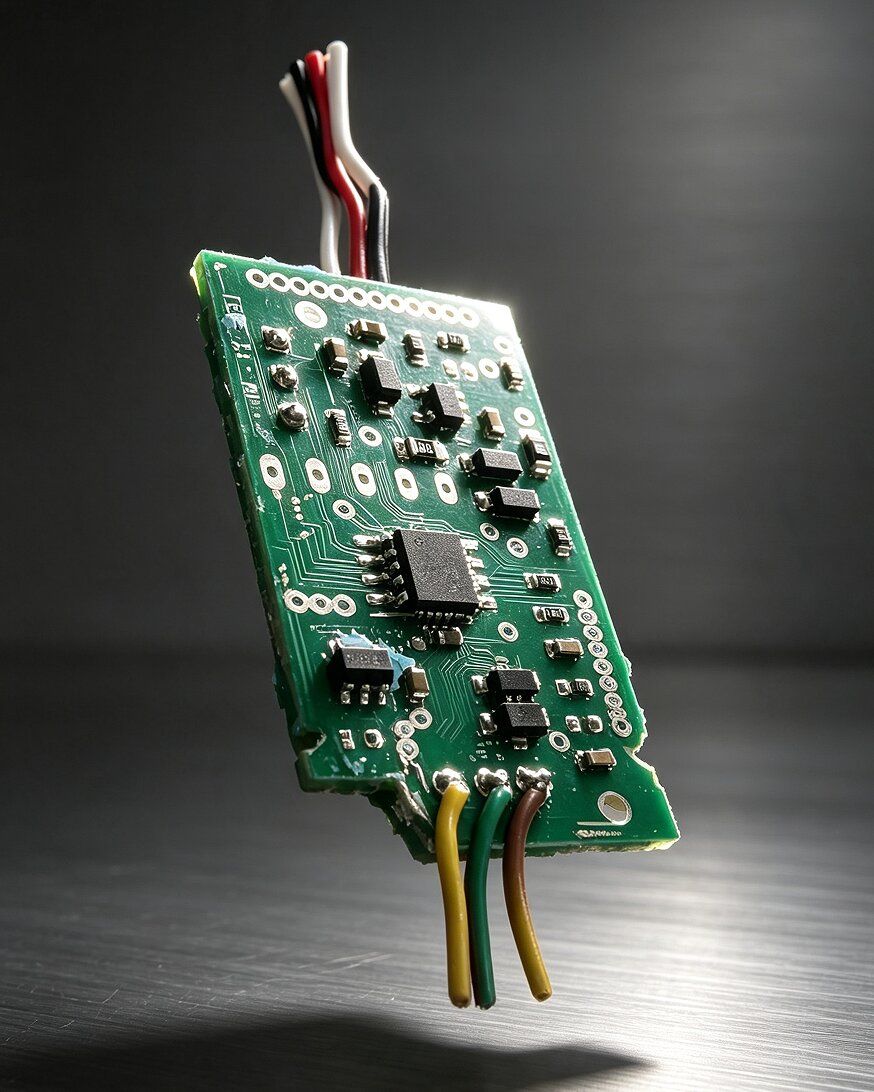

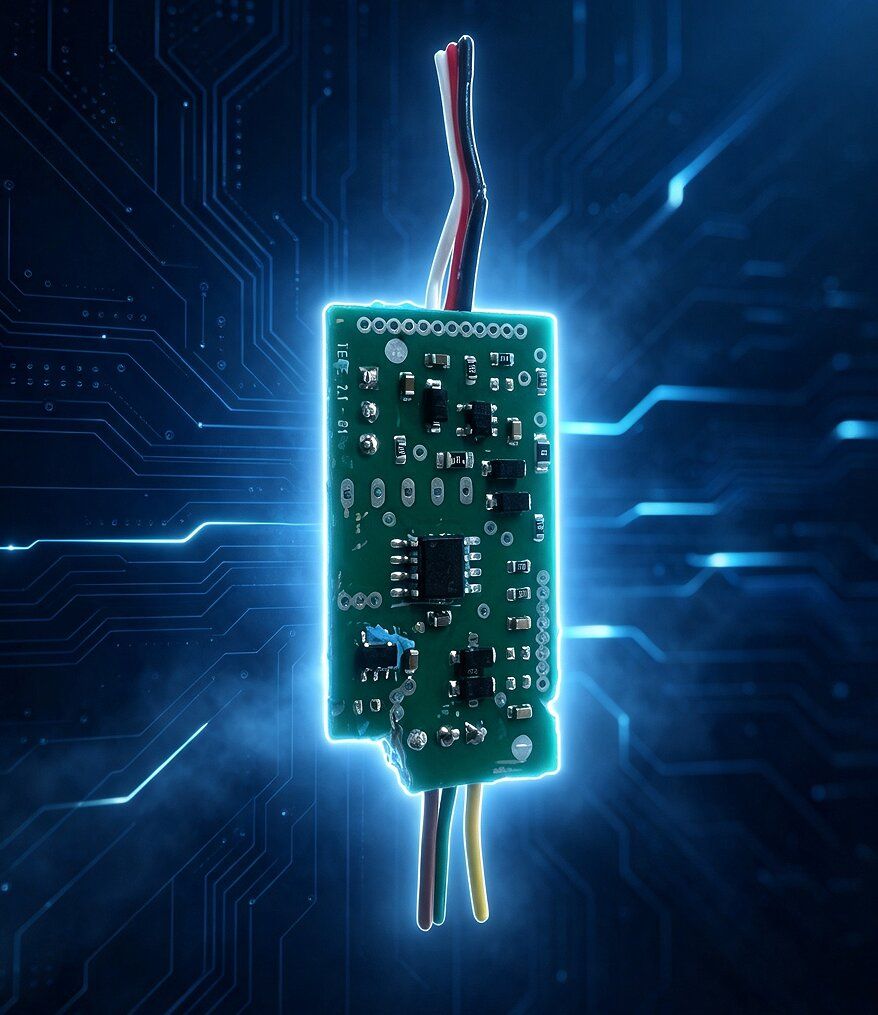

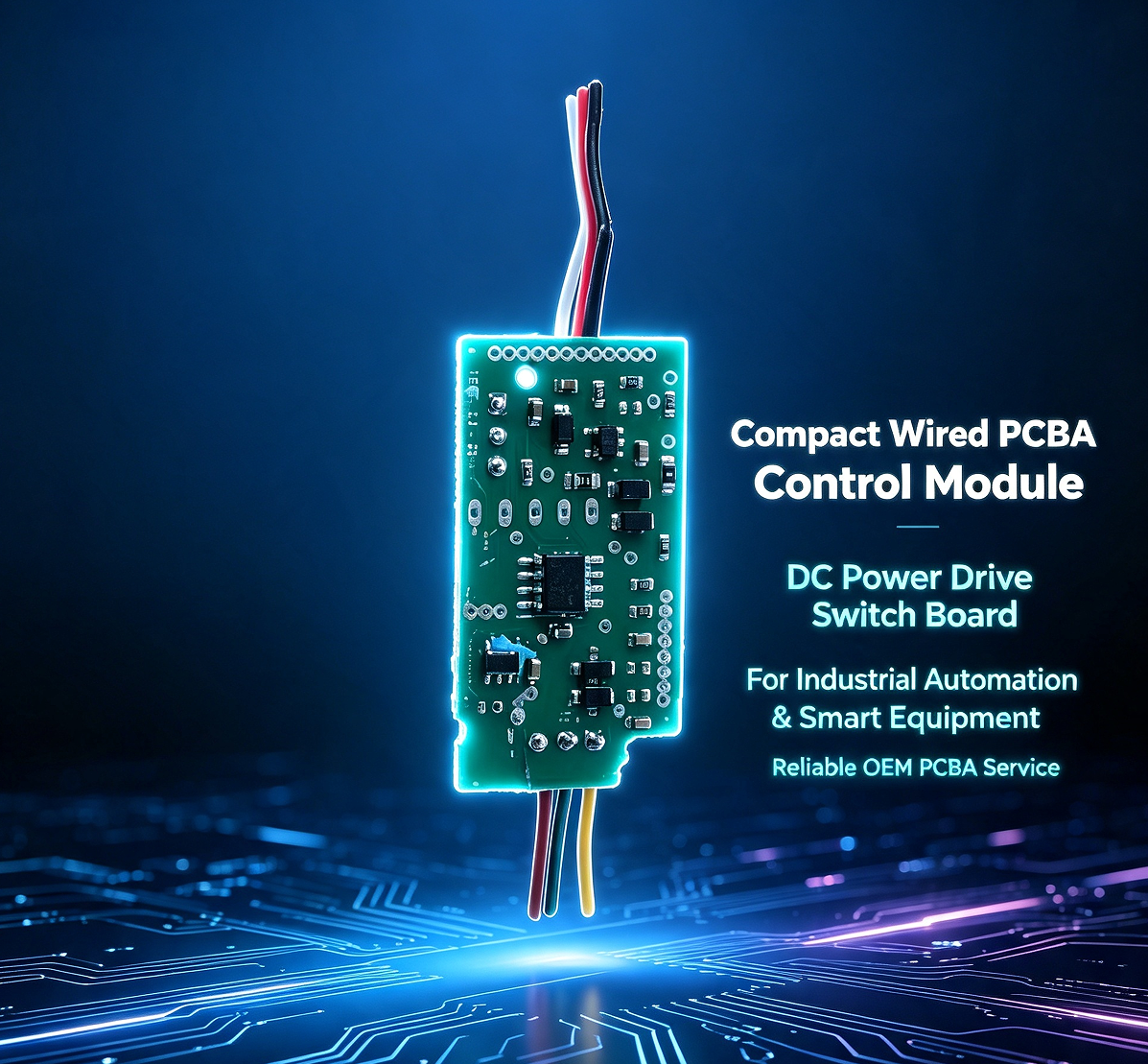

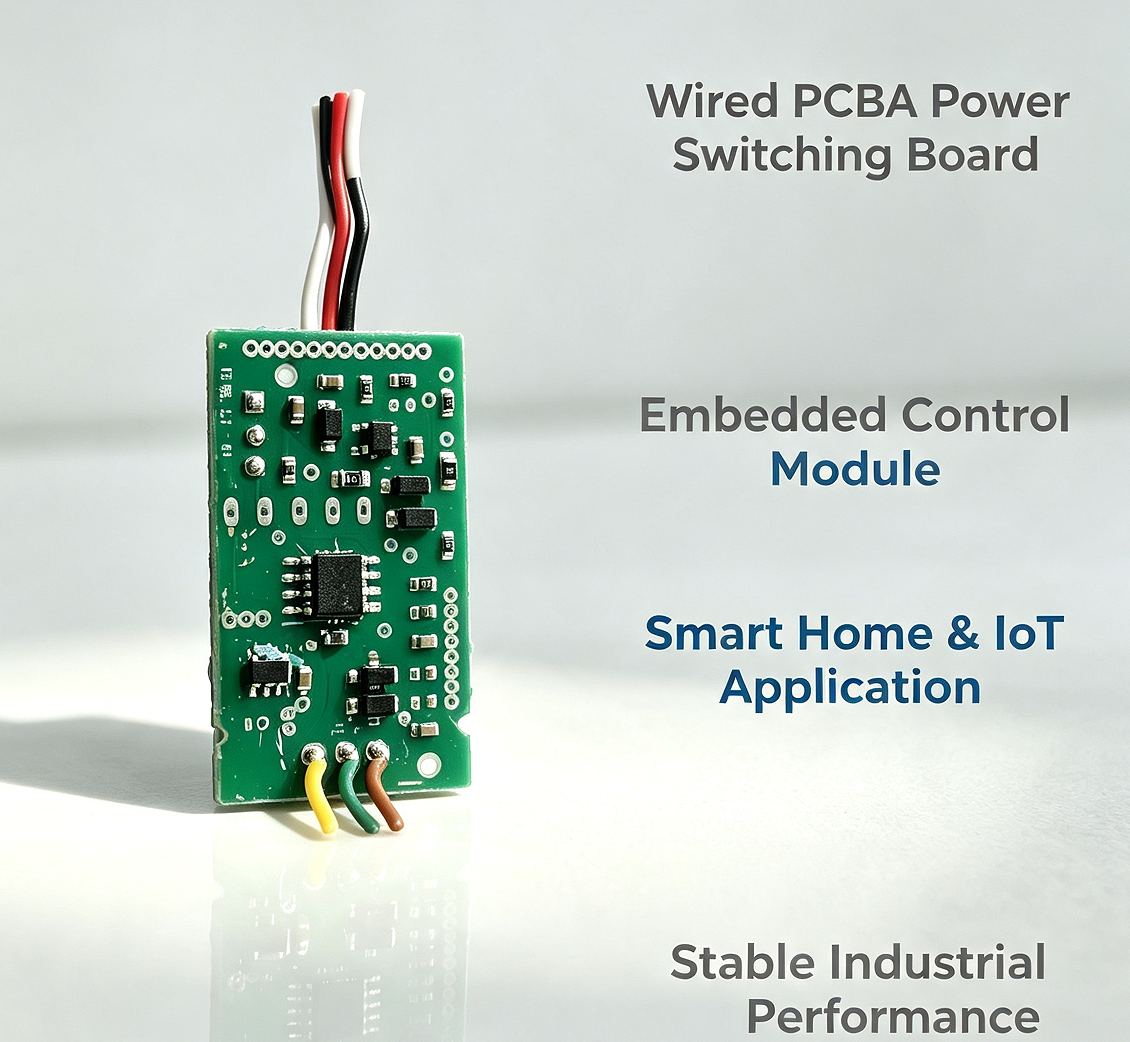

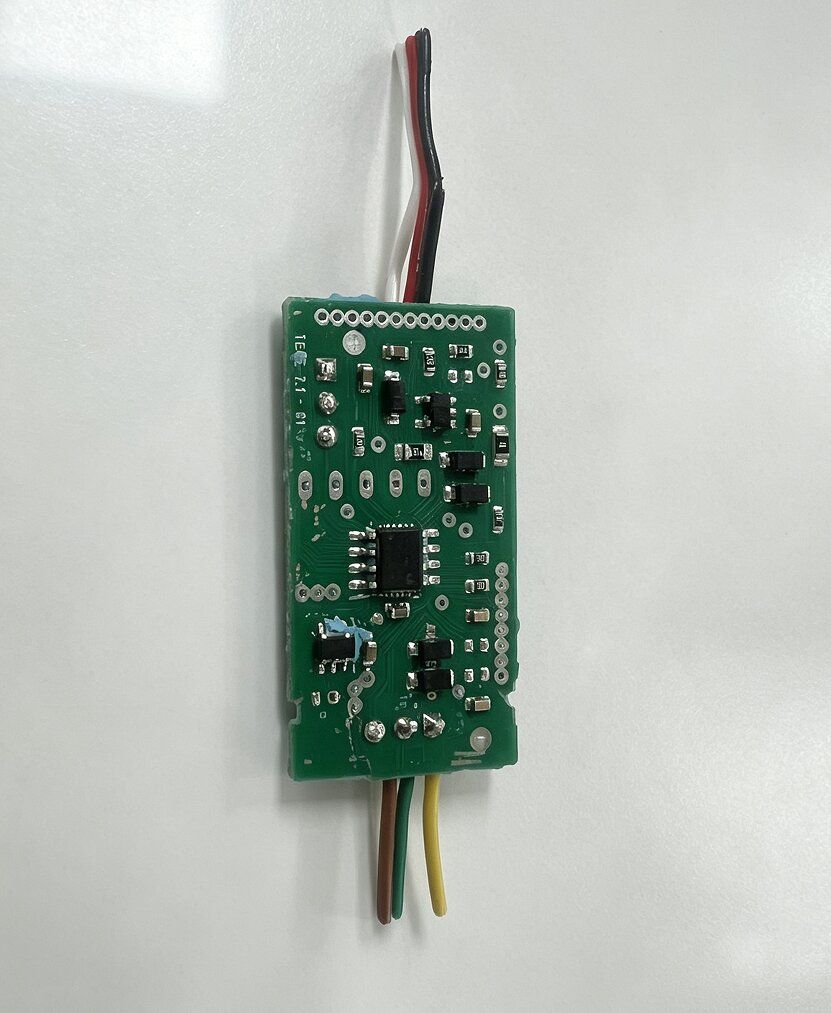

This miniature wired PCBA control board serves as an auxiliary power-switching and signal-driving unit for integrating embedded equipment. Pre-soldered input and output wires simplify assembly inside finished devices, with no extra connector required. Built on an FR4 substrate, it features a robust MOSFET switching circuit and protection components for stable performance under continuous operation in industrial and commercial devices. Ningbo MingXi is a Chinese PCB assembly manufacturer for machine builders and OEM customers.

Key Functions

• Compact form factor: easy to embed inside equipment housings with limited space.
• Pre-soldered multicolor harness wires: fast installation for mass production.
• Industrial-grade power-switching circuit: designed to drive small-power actuators.
• Anti-interference performance: suited to automation environments.
• Protection components: support stable operation under continuous working conditions.

Applications

• Industrial automation small machinery peripherals
• Solenoid valve and small actuator drive control
• Smart home embedded control devices
• IoT terminal power switching sub-boards
• Secondary control units in special-purpose custom equipment

OEM and ODM Customization

We support OEM and ODM customization, including circuit modifications, wire-length adjustments, and component upgrades. Production follows strict quality control, and the module supports integration into machine-builder systems.

What to Send for a Quotation

• What the module must drive (solenoid valve, small actuator, other load)
• Supply voltage and load requirements
• Wire length, wire count, and color coding
• Board size limits inside your housing
• Estimated order quantity

FAQs

Do I need extra connectors to install the module?

No. The input and output wires are pre-soldered, so you don't need extra connectors, which speeds assembly in finished devices.

Can you change the wire length or circuit?

Yes. We support OEM and ODM customization, including circuit modifications, wire-length adjustments, and component upgrades.

What loads is the module designed to drive?

It is designed to drive small-power actuators, including solenoid valves.

Which devices use this module?

Typical uses include small industrial machinery peripherals, smart home embedded control devices, IoT terminal power switching, and secondary control units in custom equipment.

Request a quote for your compact wired power drive control module.
