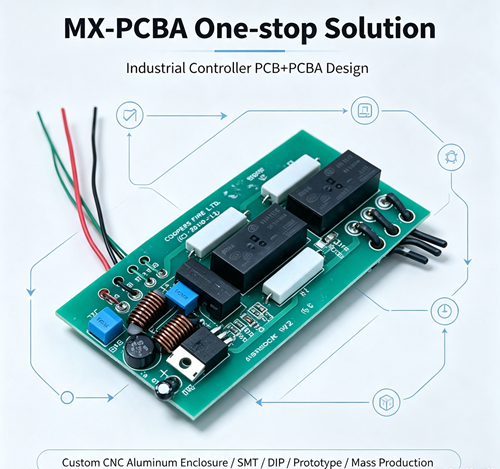

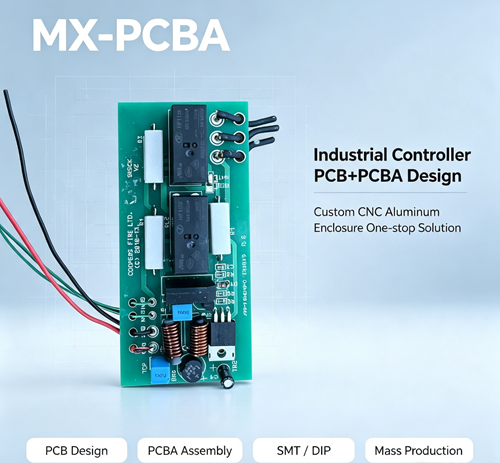

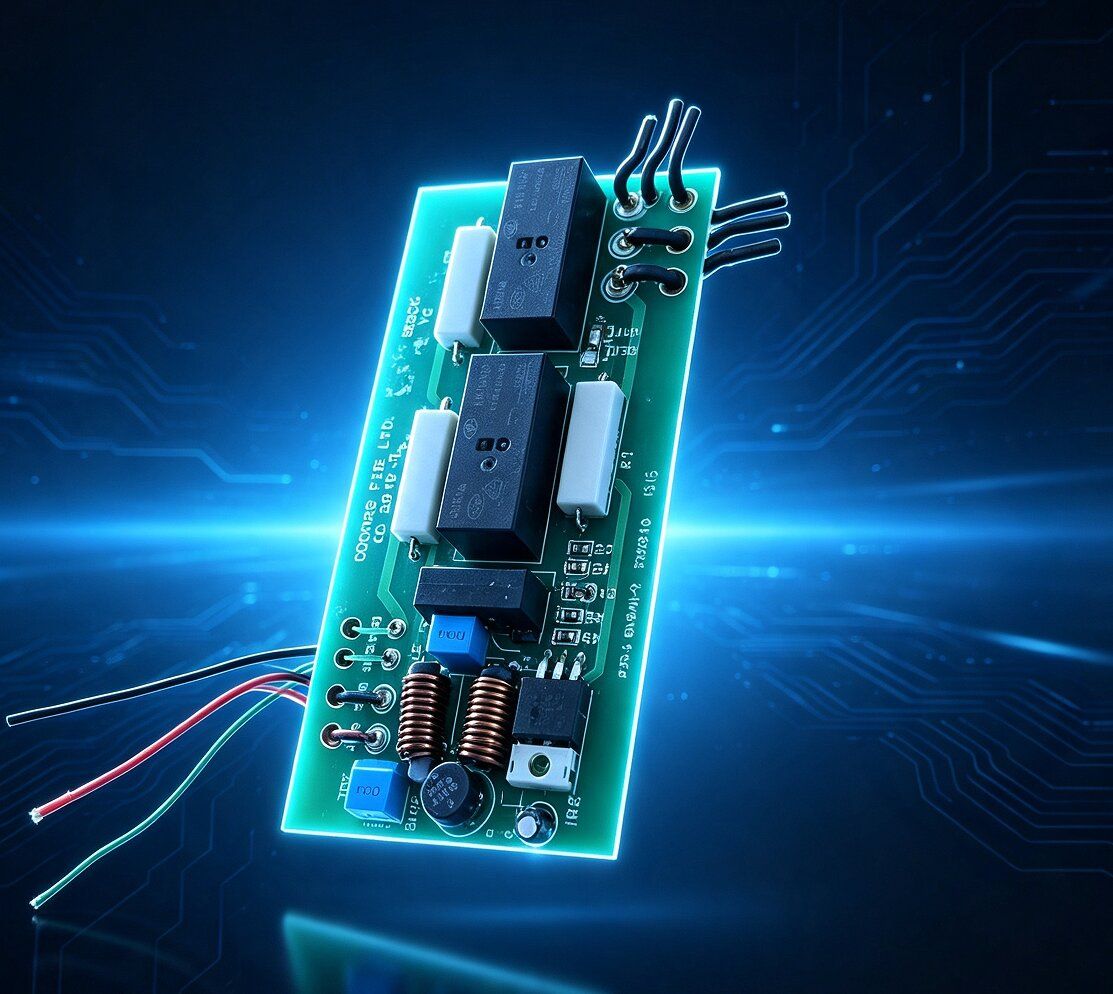

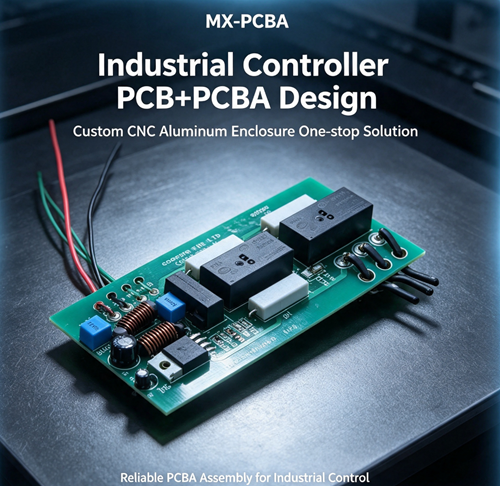

Rolling Shutter Door Controller PCBA Motor One-Stop Solution For Easy Installation

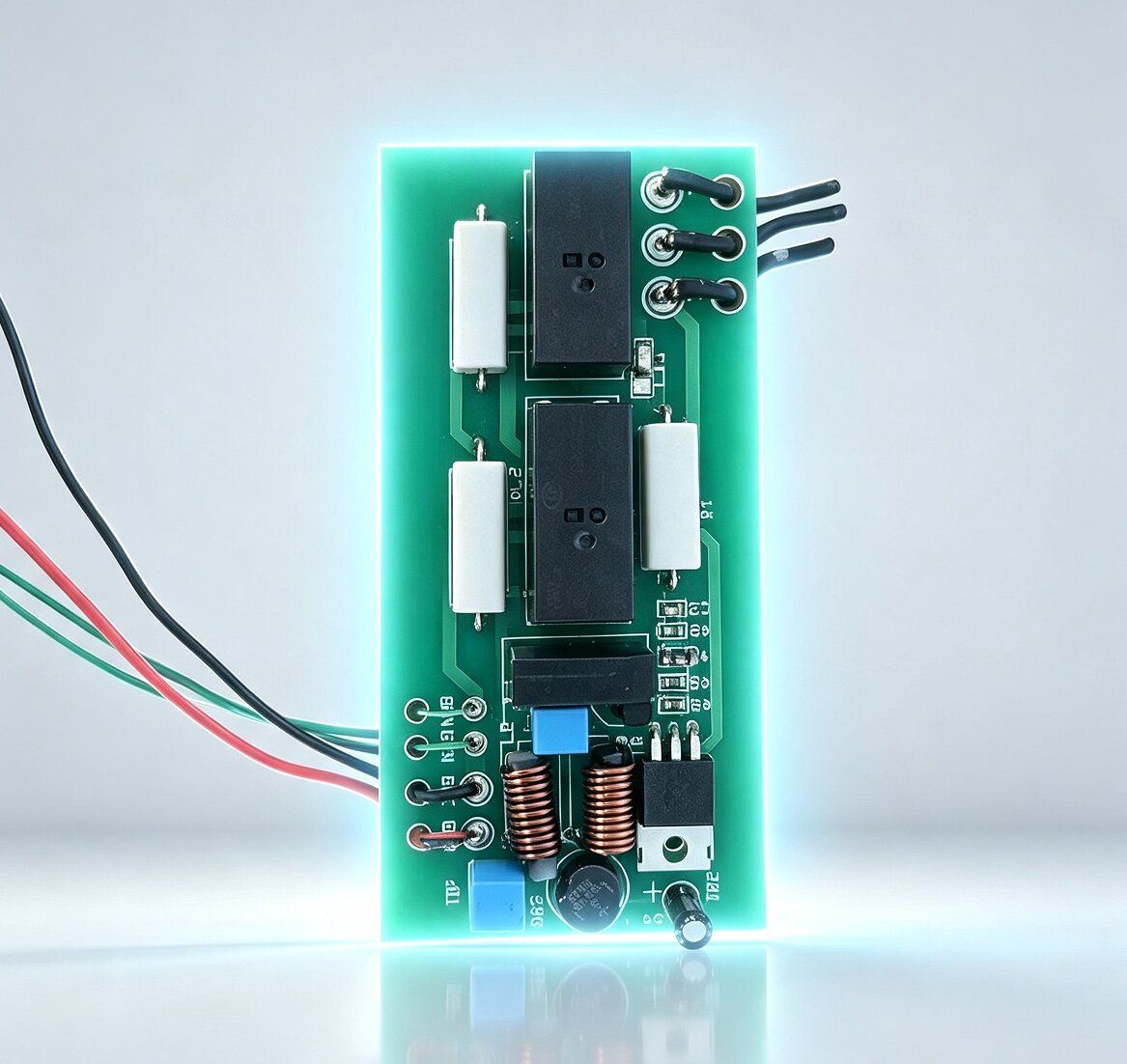

This custom-designed PCBA is the core control unit for electric rolling shutter doors. It controls the shutter motor for automatic lifting and lowering, with timed operation, adjustable travel height, sensor activation, and built-in safety circuit protection. Ningbo MingXi is a China PCB assembly exporter that designs and builds boards as a complete project, from circuit design to mass production.

Key Functions

• Automatic lifting and lowering: motor control for opening and closing the shutter.
• Timed auto open/close schedule: set opening and closing times without manual operation.
• Adjustable travel height: precise control of the shutter position.
• Sensor-activated operation: automatic lifting and lowering triggered by a sensor.
• Built-in safety circuit protection: protection for safe door operation.

Applications

• Commercial rolling shutter projects
• Industrial rolling shutter projects
• Building automation rolling shutter projects

One-Stop Service and Customization

Ningbo MingXi delivers a full one-stop engineering service: hardware circuit design, PCB layout, SMT and through-hole assembly, firmware testing, prototype validation, and mass production. We can also supply customized CNC aluminum enclosures to match your controller. We support OEM and ODM customization for different voltage standards, interfaces, and function requirements.

What to Send for a Quotation

• Shutter motor type and power rating
• Supply voltage and local standard
• Functions you need (timer, sensor input, travel-height setting, safety protection)
• Interface and wiring requirements for your installation
• Enclosure requirements and estimated quantity

FAQs

Can you customize the controller to meet our voltage and interface requirements?

Yes. We support OEM and ODM customization for different voltage standards, interfaces, and function requirements.

Can this controller be used in building automation projects?

Yes. It is designed for commercial, industrial, and building-automation rolling-shutter projects.

Do you supply an enclosure with the board?

Yes. We can supply a customized CNC aluminum enclosure to match your controller.

Can I order a prototype first?

Yes. Prototype validation is part of our service, followed by mass production upon your approval.

Request a quote for your rolling shutter door motor controller PCBA.
