High Precision Wire Cut Control Cabinet

High Precision Wire Cut Control Cabinet with Custom PCBA and Box Build

This custom wire cut control cabinet is developed for wire electrical discharge machining (WEDM) equipment. It is designed to support high-speed cutting with a high-quality surface finish and low wire consumption. You only need to specify the functional requirements. We manage the whole project, from electronic design and parts purchasing to finished cabinet assembly and validation, through our electric control panel box build service.

Key Features

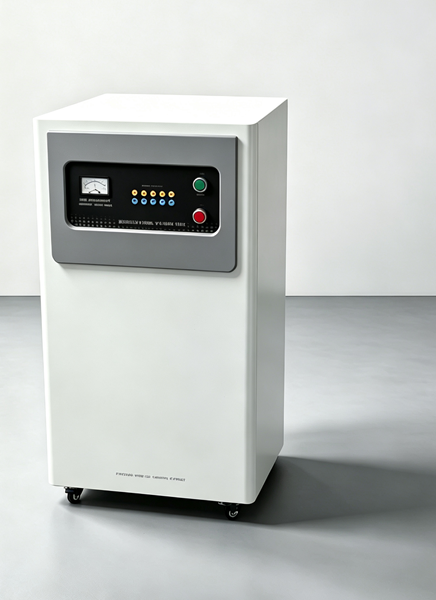

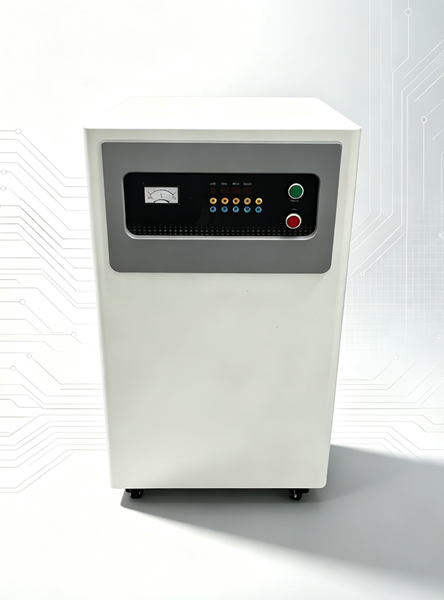

• High-frequency current display: shows the working current on the panel.
• Adjustable pulse parameters: group, pulse width, pulse interval, and power tube.
• Start/stop interlock buttons: for safe operation.
• Stable power supply: with a dedicated heat dissipation structure.

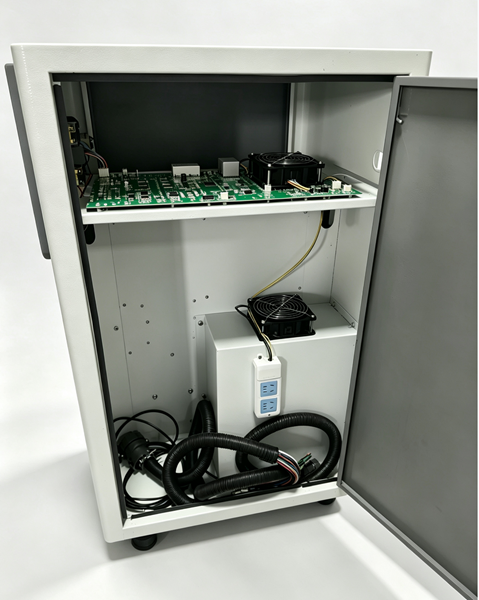

• Direct machine connection: integrated aviation connectors and standard industrial wiring terminals connect straight to the wire cut machine.

Applications

• Wire electrical discharge machining (WEDM) equipment
• Wire cut machine builders who want one partner for the electronics and the finished cabinet

Need to link your controller to drive and sensor modules inside the machine? See our industrial interface PCBA.

One-Stop Service and Customization

Ningbo MingXi provides a complete one-stop service that covers circuit board design, PCB fabrication, PCBA assembly, component sourcing, mechanical cabinet integration, and full box build assembly. The project scope we deliver:

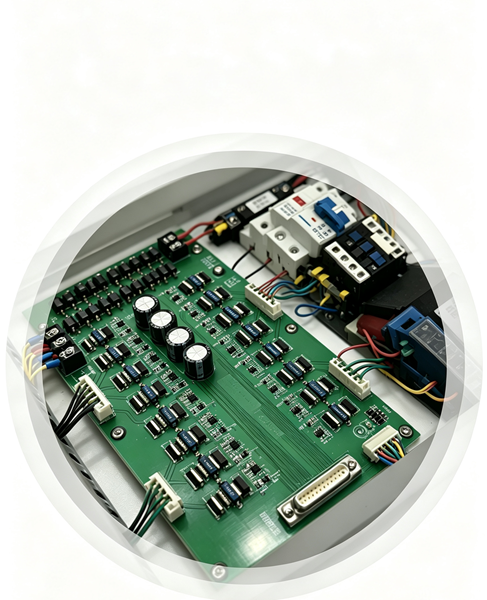

• Hardware schematic design and control board layout development
• BOM review, component selection, and material procurement
• PCBA assembly and functional testing of the single board

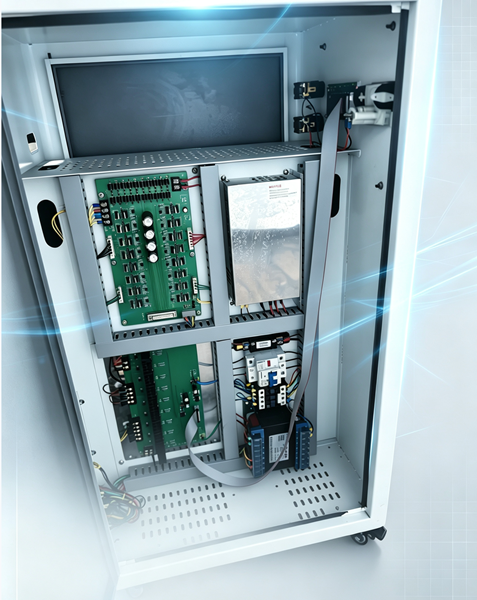

• Wiring, harness assembly, and cabinet fitting
• Final system integration, power-on test, and parameter commissioning

With PCBA assembly and box build under one roof, you get a simpler supply chain, a shorter development cycle, and a single accountable partner for the complete control cabinet.

Want to know more about who builds your cabinets? Visit our About Us page.

What to Send for a Quotation

• Your functional requirements for the wire cut machine
• Pulse parameters and current display you need
• Supply voltage and power requirements
• Connector type and wiring terminal requirements
• Cabinet size, validation requirements, and estimated quantity

FAQs

Which pulse parameters can be adjusted?

Group, pulse width, pulse interval, and power tube are adjustable, and the cabinet shows the high-frequency current.

How does the cabinet connect to the wire cut machine?

It has integrated aviation connectors and standard industrial wiring terminals for direct connection to the machine.

What do I need to provide to start a project?

Your functional requirements. We handle electronic design, parts purchasing, cabinet assembly, and validation.

Does the cabinet include safety features?

Yes. It has start/stop interlock buttons for safe operation, plus a stable power supply with a dedicated heat dissipation structure.

Request a quote for your high-precision wire cut control cabinet.
